550mm Width SUS304 Flap Barrier Gate Access Control Indoor Outdoor Use Turboo
Product Description
Pedestrian turnstile gate E242 are widely used nowadays in places ,where large pedestrian flows exist and require.
A fast, safe and effective passing. Usually wheel chair users, luggage or trollers need to be Coonsidered. Thus, Unique designed mechanism is developed with Germany made belt to ensure 5,000,000 or longer lifecycles .
The whole system runs smoothly, long-life performance, high operation dependability and fast response.
Alarm function, in case of illegal intrusion and reverse intrusion.
Infrared sensor to prevent pinch pedestrians.
Anti-breakthrough function. The gate is locked automatically until opening signal received.
Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
Product Parameters
| Product Model | E242 |
| Size | 1200*280*960mm |
| Weight | 45.00Kg |
| Material | 1.0mm sus 304 hairline 400 |
| Arm Material | PC |
| Driver | Germany Imported belt+China Motor |
| Pass width | 550mm |
| Pass rate | 35 Persons/minute |
| Power supply | 24V |
| MCBF | >5,000,000 cycles |
Dimension Diagram
Features And Benefits:
1. The flap barrier gate is equipped with international standard electrical interface, can be easily integrated with other
R/W device, also can be controlled and management through remote supervision computer
2. Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating
Attempts, together with anti-strike function to protect pedestrian
3. LED gate direction indicator that displays the current operational state to pedestrian. Green
Arrow for entry free, Red Cross for passage locked.
4. Can open the turnstile by two input signals (signals can be input by access controller, button or
Other equipments) Gating system
5. Provide audible sound prompt and information display function.
6. The flaps will open automatically during power interruption and recover N/C mode after power on (optional)
7. The barrier can be set to delay closing in 1-60s after a valid card-reading.

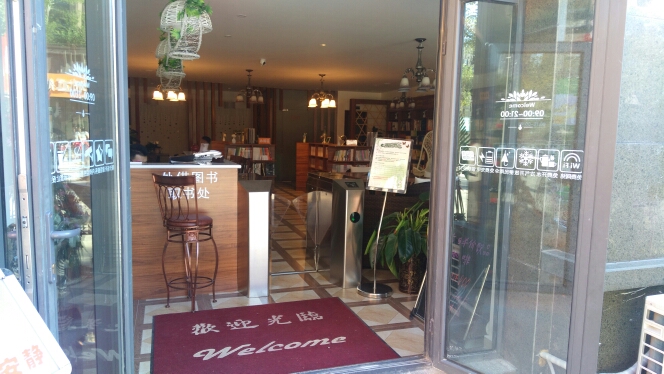

Projetc Case
Service And Shipping
FAQ:
1. Do you have full automatic tripod turnstile?
Yes. All semi-automatic tripod can be changed to full automatic, there is extra costs to do it.
2. How about your company’s actual strength?
We are the top 3 in turnstile field in China. We have more than 200 employees, a R&D group with 50 people, 1 office and 2 factories. Factories and office buildings are more 20000 square meters in total.
3. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
4. How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
5. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days. The customized products need 15-20 working days.
Turboo new design tripod turnstile gate model E142, pedestrian automatic access control system waist height 304 stainless steel arm drop gate, with RFID card, fingerprint identification and face verification mode.Combined with infrared detector, temperature controller, revolving door series product design novel, can be widely used in subway, school, office, scenic area, gym, factory, residential, supermarket and other places.
